Partition Material Selection Guide
All finishes are type #304 Stainless Steel.
Due to variances among color monitors the colors that appear on your screen may not be exact.
If color is important you must request samples prior to ordering.
Stainless Steel

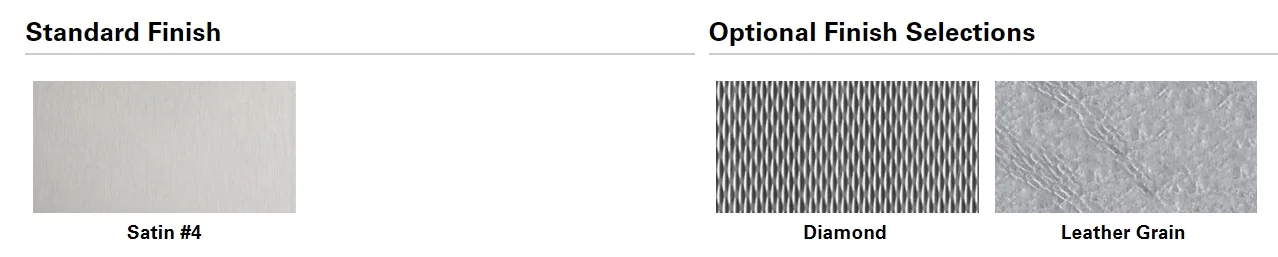

Gleaming beauty indefinitely, The elegance of stainless steel complements any design scheme. Incorporates the known corrosion resistant benefits of type 304 stainless steel. Easily maintained, even scratches can be buffed out. Satin or textured finish. Available in all styles.
Stainless steel toilet partitions provide a modern look and retain their beauty indefinitely. By adding a textured finish, increased resistance to vandalism can be achieved. Available in all four mounting styles.
Options:
- Stainless Steel Stirrup Brackets
- Stainless Steel Door Hardware
- Wood Core
- Continuous Anodized Aluminum and Stainless Steel Brackets
- Continuous Piano Hinges
- Ultimate Privacy™
RELATIVE COST - Powder Coated Steel = 100%
- Powder Coated Steel 100%
- Type 304 Stainless Steel Standard Finish (w/Optional Textured Finish) 255% (355%)
Technical Documents
SOLID PLASTIC (HDPE)
Solid Plastic partitions are water resistant and unaffected by steam or high humidity. Our solid plastic partitions have passed the NFPA 286 fire test standard. Our most popular colors are also available in 100% post-consumer recycled material.
Ideal choice for busy public facilities and high humidity applications - never needs painting and will not easily dent, rust or delaminate. Available in a wide variety of colors.
Options:
- Stainless Steel Stirrup Brackets
- Stainless Steel Door Hardware
- Continuous Piano Hinges
- Continuous Anodized Aluminum and Stainless Steel Brackets
- Continuous Plastic Brackets
- Plastic Trim Shoes
- No-Sight Privacy Strips
RELATIVE COST - Powder Coated Steel = 100%
Solid Plastic (HDPE) 190%
Technical Documents
POWDER COATED STEEL
The powder coating and galvanized steel on these partitions provide quality and economy. The finish is resistant to wear, fading and scuffing. It is easily cleaned and wiped dry.
High-tech quality at an economical price.Thermoset hybrid powder finish on galvannealed steel is highly resistant to corrosion, grease, acids, caustics, mars and stains. A broad range of contemporary colors to complement any interior.
Options:
- Stainless Steel Stirrup Brackets
- Stainless Steel Door Hardware
- Continuous Anodized Aluminum and Stainless Steel Brackets
- Continuous Piano Hinges and Ultimate Privacy™
RELATIVE COST - Powder Coated Steel = 100%
Powder Coated Steel 100%
Technical Documents
PLASTIC LAMINATE MOISTURE GUARD™
Introducing the new Plastic Laminate Partitions with Moisture Guard™ Edge Banding. Our Moisture Guard™ Edge Banding fuses with the substrate creating a seamless beveled profile that eliminates any unsightly black lines that appear in standard Plastic Laminate. ASTM tests on Moisture Guard™Edge Banding confirms 3X greater durability with increased resistance to moisture and humidity than standard Plastic Laminate. Available in 45 colors/patterns and our new Easy Stall Shoe* speeds up the installation process. Our Plastic Laminate with Moisture Guard™ Edge Banding is now backed with an industry leading exclusive five-year warranty.
Options:
- Stainless Steel Hardware
- Continuous Anodized Aluminum and Stainless Steel Brackets
- Continuous Piano Hinges and Steel Core Pilasters
*Floor Anchored/Overhead Braced Only
RELATIVE COST - Powder Coated Steel = 100%
Plastic Laminate 110%
Technical Documents
BLACK CORE PHENOLIC
Black Core Phenolic partitions sheets are fused at high temperature and pressure. In addition to strength and serviceability, a wide range of colors provides limitless design flexibility.
Holds up even under severe moisture conditions from showers, pools and saunas, or when maintenance includes hosing down toilet partitions. Ideal for where vandalism is a problem.
Options:
- Continuous Piano Hinges
- Continuous Anodized Aluminum and Stainless Steel Brackets
- Custom Colors
- No-Sight Privacy Strips
- Class “A” Fire Rated Material—Black Core Only.
RELATIVE COST - Powder Coated Steel = 100%
Black Core Phenolic 200%
Technical Documents
COLOR-THRU PHENOLIC
Color-Thru Phenolic lives up to its name, with surface color through and through. This product is impact, scratch and graffiti resistant. It also has excellent screw-holding power and all the advantages of traditional Phenolic performance. Available in all styles and attractive colors.
Options:
- Continuous Piano Hinges
- Continuous Anodized Aluminum and Stainless Steel Brackets
- Custom Colors
- No-Sight Privacy Strips
- Class “A" Fire Rated Material- Black Core Only
RELATIVE COST - Powder Coated Steel = 100%
Color-Thru Phenolic 250%
Technical Documents
